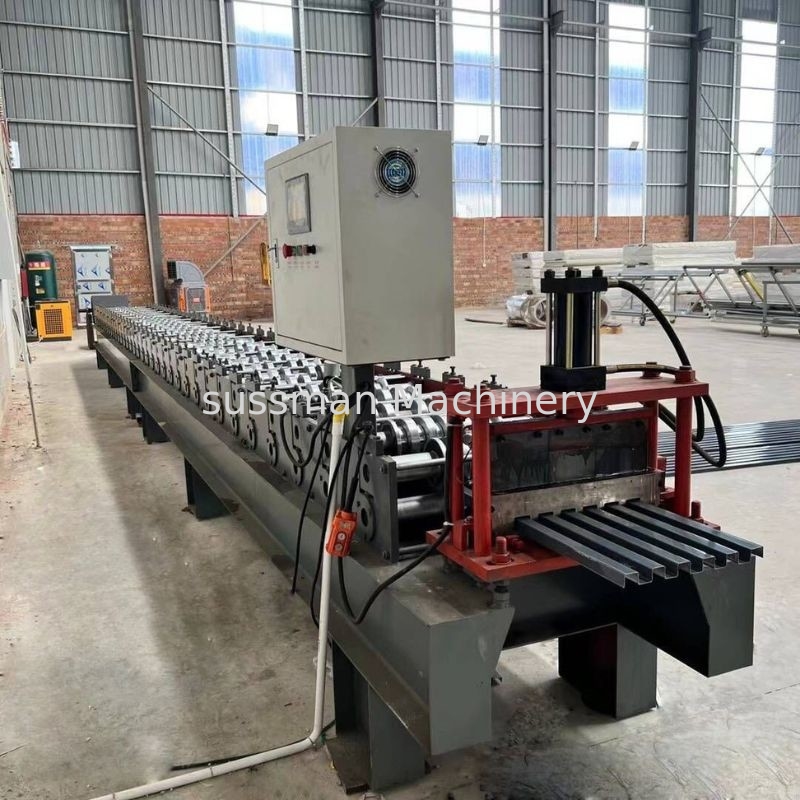

0.3-0.8mm Thickness Metal Facade roof Panel Roll Forming Machine Concealed Box Rib Wall Panel roll forming machine
  • 0.3-0.8mm Thickness Metal Facade roof Panel Roll Forming Machine Concealed Box Rib Wall Panel roll forming machine
  • 0.3-0.8mm Thickness Metal Facade roof Panel Roll Forming Machine Concealed Box Rib Wall Panel roll forming machine
  • 0.3-0.8mm Thickness Metal Facade roof Panel Roll Forming Machine Concealed Box Rib Wall Panel roll forming machine
  • 0.3-0.8mm Thickness Metal Facade roof Panel Roll Forming Machine Concealed Box Rib Wall Panel roll forming machine
  • 0.3-0.8mm Thickness Metal Facade roof Panel Roll Forming Machine Concealed Box Rib Wall Panel roll forming machine
0.3-0.8mm Thickness Metal Facade roof Panel Roll Forming Machine Concealed Box Rib Wall Panel roll forming machine

0.3-0.8mm Thickness Metal Facade roof Panel Roll Forming Machine Concealed Box Rib Wall Panel roll forming machine

Place of Origin Wuxi Jiangsu China
Hàng hiệu Sussman
Chứng nhận CE ISO SGS
Model Number SM-RP
Thông tin chi tiết sản phẩm
Material Thickness:
0.3-0.8mm Galvanized steel coils or PPGI
Motor Power:
7.5 KW
Rolling speed:
10-12m/min
Roller statione:
About 24 stations
Cutting method:
hydraulic stop cutting
Application:
architectural wall panels
Điều khoản thanh toán & vận chuyển
Minimum Order Quantity
1 set
Giá bán
negotiable
Packaging Details
Standard packing
Delivery Time
65 days after deposit
Payment Terms
T/T L/C
Supply Ability
10 sets per months
Mô tả Sản phẩm

0.3-0.8mm Thickness Metal Facade Roof Panel Roll Forming Machine Concealed Box Rib Wall Panel Roll Forming Machine



Wall Panel Cold Roll Forming Machine adopts coil steel sheet as the raw material, decoiling, continuous roll forming, automatically cut to the size and output the finished panels.




Technical Parameter



Item NO



Description



Offered specification
1.1 Rolling speed 10-12m/min
1.2 Rolling thickness 0.4-0.8mm
1.3 Raw material Galvanized steel coils or PPGI
1.4 Main motor 7.5kw
1.5 Hydraulic motor 5.5kw
1.6 dimension 7500×700×1000(mm)
1.7 Roller stations About 30-32 stations
1.8 Roller material 45#forge steel, coated with chrome
1.9 Shaft diameter Φ70mm,material is 45# forge steel
1.10 Transmission By chain 1 inch
1.11 Material of chain 45# forged steel with frequency quenching, 12A
1.12 Material of cutting Cr12Mov with quench HRC58-62°
1.13 Tolerance 6m+-0.5mm
1.14 Frame H type steel
1.15 Voltage 380v, 50hz, 3phases



Main Components



No Name Type Quantity
1 5 ton hydraulic de-coiler RF-GT15-360 1 set
2 Main roll forming machine RF-GT15-360 1 set
3 Control box RF-GT15-360 1 unit
4 Hydraulic station RF-GT15-360 1 unit
5 Out tables RF-GT15-360 2 units
6 Safety cover RF-GT15-360 1 unit



Glazed tile working flow

0.3-0.8mm Thickness Metal Facade roof Panel Roll Forming Machine Concealed Box Rib Wall Panel roll forming machine 0



Profile Drawing


0.3-0.8mm Thickness Metal Facade roof Panel Roll Forming Machine Concealed Box Rib Wall Panel roll forming machine 1

0.3-0.8mm Thickness Metal Facade roof Panel Roll Forming Machine Concealed Box Rib Wall Panel roll forming machine 2


Application


0.3-0.8mm Thickness Metal Facade roof Panel Roll Forming Machine Concealed Box Rib Wall Panel roll forming machine 3

0.3-0.8mm Thickness Metal Facade roof Panel Roll Forming Machine Concealed Box Rib Wall Panel roll forming machine 4
