Máy tạo hình cuộn Guardrail
>
|
| Place of Origin | China |
| Hàng hiệu | Sussman |
| Chứng nhận | CE ISO9901 |
| Model Number | RF |
Product specifications
| Productivity | Products as per your drawings |
| thickness | 1.5-3.0mm |
| coil material | Galvanized Coil |
| coil weight | 5000kg |
| coil width | 500mm |
General specification of production line
| Total power required | 30 k.w |
| Dimensions(L*W*H) | 9m*2.5m*1.6m |
| Overall packing shipment | one 40ft container |
| Working hours per day | 8 to 16 hours |
| Set up time | 20 min |
| Line direction | Left to right while facing operator panel |
| Machine frame | H-BEAM frame |
| Variable line speed | 15mtr./min.(not including cut) |
| Material loading system | Manual |
| Accuracy level | Profile dimension +/- 0.5 mm |
| Angular dimension: +/- 1 degree | |
| Bend/twist/warp: 0.5 mm/mtr | |
| End flair(at cut end): +/-0.5 mm | |
| Cut length: +/-1.5-2.0 mm |
Consist of production line
| A: Passive Decoiler |
| B: Feeding & Leveling Applicator |
| C: Punch Machine |

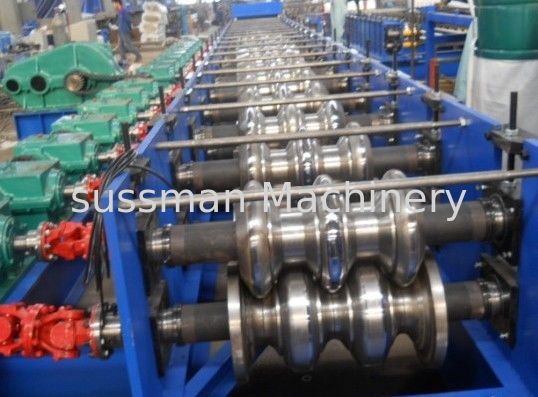

| D: Roll Forming Unit |
| E: Cutting System |
| F: Output Table |
Profile drawing and samples
Our advantage,
1.We can produce the cold roll forming machine according to customers final products and requirements.
2.We are focusing on the reputation.The after-sales service can be assured.Engineer are available to service machinery overseas.
3.We are focusing on the quality of the machine, and all of our products got CE, ISO, SGS certifications.
4.The price is reasonable.We as the manufacturer can provide you the high quality machines with the most competitive price.
