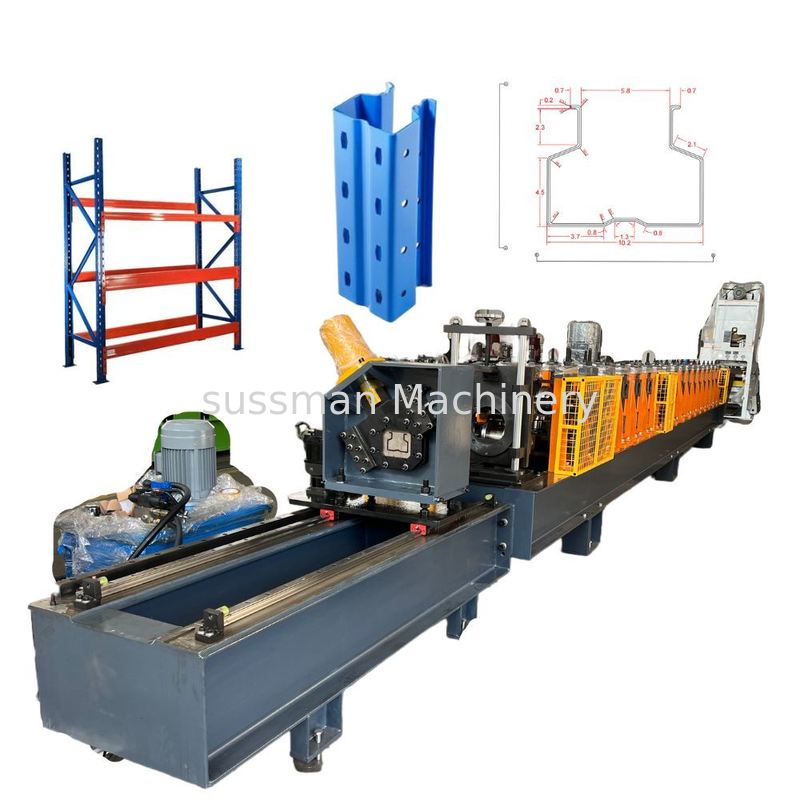

Warehouse shelf upright roll forming machine is widely used in producing upright frame, box beam and step beam. Our intelligent roll forming machine could make wide range of sizes using cantilever type structure, and automatically change by motors from one size to the other not only at width but also at height. The one and only step is to put your required data into our touch screen and wait for few seconds. Machinable thickness is from 1.5-3mm with raw material Cold-rolled Steel, Galvanized Coil, PPGI, Carbon steel, Stainless Steel and Aluminum. Our produced profile meet ISO, CE , FEM standards, and our machine is applied to Warehouse ,supermarket ,industry or home.
We have experience of exporting our pallet racking roll forming machine to Pakistan, Mexico, Peru, Egypt, Australia and UK etc. In warehouse pallet racking system, we are able to manufacture more machines like Box beam roll forming machine, step beam roll forming machine and shelf panel roll forming machine etc.
We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service,adaptable for your every need. Whichever line you choose, the quality of Sussman Machinery will ensure you obtain perfectly functional profiles.

 Technique Parameter

5.1. Suitable Plate Material: thickness 1.5-2.5mm, Galvanized steel or blank steel
5.2. Working Speed: 0-12 meters /minute
5.3. Forming Steps: 18 stations
5.4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5.5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
5. 6. Drivensystem: Gearbox
5.7. Main Power with reducer: 18.5KW WH Chinese Famous
5.8. Cutting: Hydraulic Cutting Cr12mov
5.9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
5.10. Hydraulic Station Power: 7.5KW Wuxi Wanshen Famous Chinese Brand
5.11. The whole machine is controlled PLC.
5.12 PLC--Panasonic, Japan English and Chinese Language
* Touch Screen--Panasonic Japan
* Encoder--Omron, Japan
* Electric parts--Schneider

Working Flow

Uncoiling—Feeding&Leveling---Punching--Roll forming—Cutting—Products collecting



 Profile Drawing:

More details

(1) Manual Ue-coiler

Un-power: manual de-coiler; Max. Capacity: 5T

Suit for coil inner diameter: 508mm, suitable coil Max. out diameter: 1000mm

Manual power expands the coil inner surface.

(2) Flying saw Cutting

1) No stop cutting;

2) The cutting blade material is Cr12 with quenched treatment.

3) Adopts welded frame for good rigidity.

4) Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm.

5) The power of cutting is provided by hydraulic station.

6) The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder. When final product reaches the set length, machine will stop to cut the Product automatically. Finish this action, machine will run again continuously.

(3) PLC Control System

1) This system uses Delta PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.

2) Delta converter adjusts speed technology, realize the automatic production.

3) Text screen is input and cancelled the working data.

4) Friendly man-machine interface system can be set batches to the work piece, length, quantity, etc.

5) Encoder count, having function of count and measuring length.

6) Suitable power voltage: 380V/50HZ/3Phase (can de designed according to buyer’s requirement)
